Why X-LAB?

X-LAB’s carbon fiber bikes are built for riders who want lightweight performance, responsive handling, and a more premium ride feel. Using XDS’s experience in advanced carbon engineering, these bikes combine efficient frame design with modern components for road, gravel, and performance-focused riding. They are a strong choice for riders who want high-end speed and comfort without the traditional high-end price.

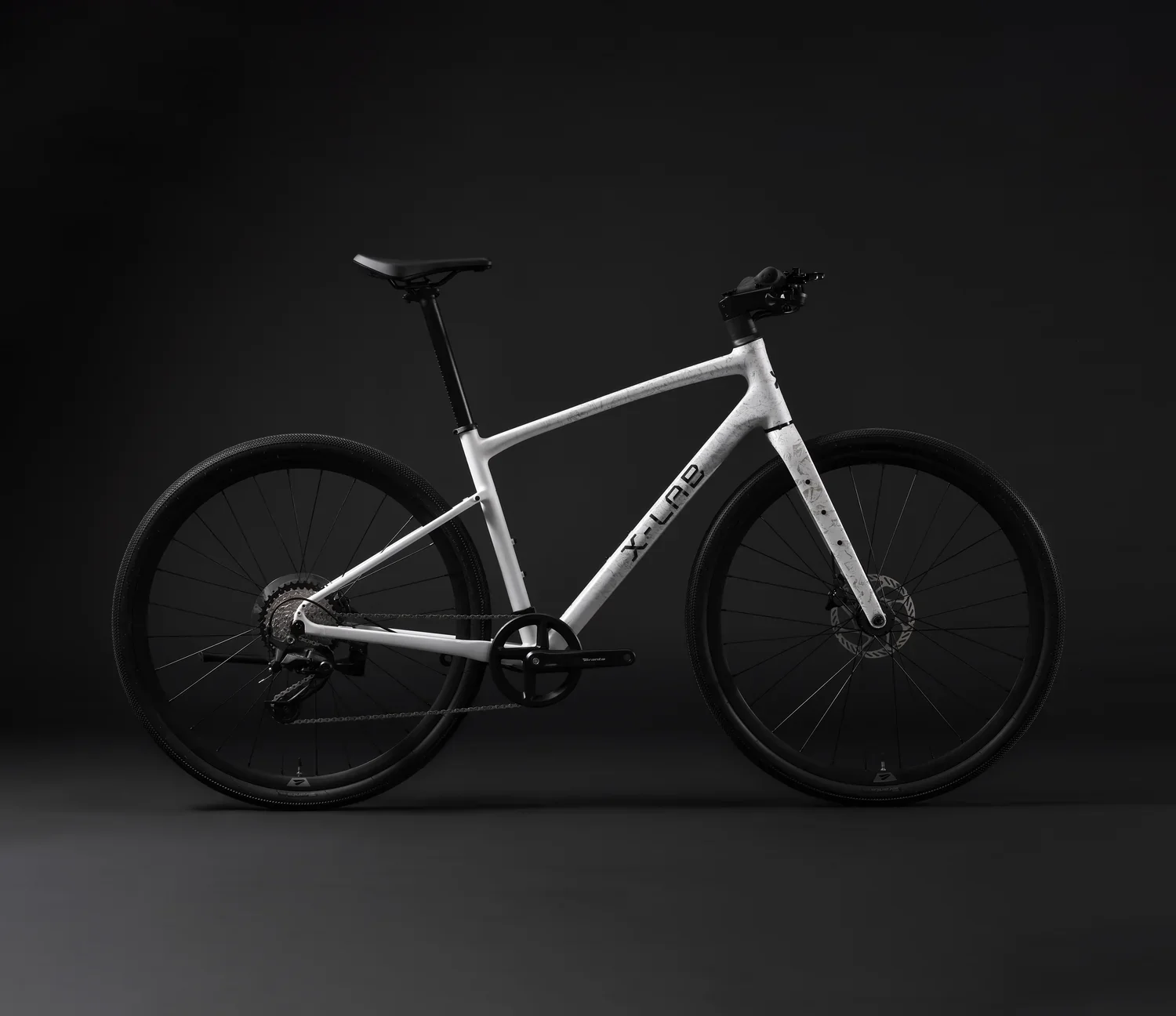

A sleek, modern white bicycle with black tires and a black seat, displayed against a dark background.

(Frostbite, Morning Moss)

X-LAB SP3

The X-LAB SP3 is an approachable city and fitness bike built for riders who want simplicity, comfort, and everyday reliability. Its lightweight alloy frame, carbon fork, and smooth-shifting Shimano CUES drivetrain make it easy to enjoy commuting, neighborhood rides, and casual fitness riding. With clean design, dependable components, and strong value, the SP3 is a great first step into a better everyday cycling experience.

    • Integrated cockpit with clean cable routing

    • XDS X6 Alloy frame + Carbon fork

    • Quad Lock phone mount

    • Shimano CUES drivetrain + hydraulic disc brakes

    • Frame: XDS X6 Alloy Frame

    • Fork: XDS Carbon Fork, 100x12mm Thru-axle

    • Stem: Branta Alloy Stem, 90mm, 0 Degree Rise

    • Handle Bar: Branta X6 Alloy Handlebar, 25mm Rise, 9 Degree Back Sweep

    • Seatpost: XDS Alloy 31.6mm Seatpost, 400mm Length, 12mm Setback

    • Rear Derailleur: Shimano Cues RD-U6020, 10-Speed

    • Shifter: Shimano 105 ST-R7120

    • Brakes: Branta C515 Hydraulic Disc Brake, 3 Finger Lever, 2 Piston Caliper

    • Casette: CS-M6010C 10-speed, 11-40T

    • Crankset: Branta Alloy Square Taper Crankset, 170mm, 40T,

      Narrow-wide Teeth

    • Bottom Bracket: BSA Square Taper

    • Rotors: Branta AR14, F:160mm R:160mm

    • Chain: TEC GT-Glide

    • Wheel Set: Branta A27 Regular, Alloy Rim

    • Tires: Branta R240, 700x40C, 30TPI Max Tire Clearance: 45C w/ Full-Wrapped Fender

    • Saddle: Branta SRX+

    • Phone Holder: Quad Lock Mount

    • Weight Limit: 110 kg/ 242 lbs

    • Weight: 10.71 kg / 23.61 lbs (Size L)

    • Size: S / M / L / XL

    • Integrated power meter connects to thrid-party software form ANT+

    • Compatible with most wired, wireless, or mechanical groupsets from all major drivetrain brands

    • The rims and tires on SP3 are not tubeless compatible.

    • SP3 uses a standard threadless stem and 31.8mm handlebar, making it compatible with a wide range of aftermarket stem and handlebar options.

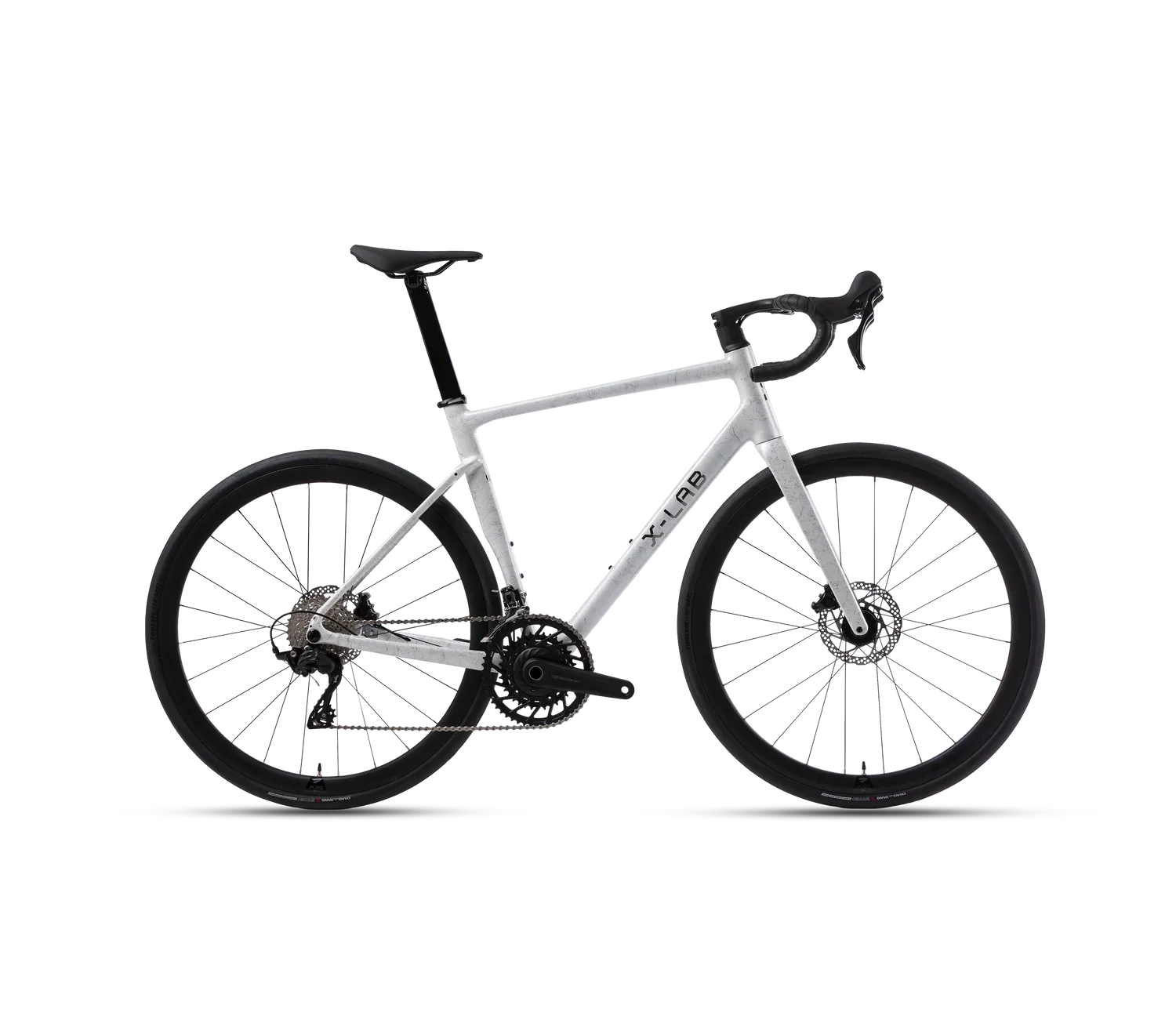

A modern road bicycle with a white frame, black tires, drop handlebars, and an electronic gear system, labeled X-LAB.

(WaveBreaker White, Hydrostatic Blue)

A dark, blurred background with a subtle gradient from darker at the edges to slightly lighter in the center.

X-LAB RS5

The X-LAB RS5 is a versatile endurance road bike built for riders who want comfort, speed, and everyday reliability. Its lightweight alloy frame, carbon fork, and Shimano 105 drivetrain deliver a smooth and confident ride, while the 38mm tire clearance adds extra comfort and flexibility for longer miles. With an integrated power meter and strong value-focused design, the RS5 is a great choice for riders getting into road cycling or looking for a dependable everyday road bike.

    • Shimano 105 groupset

    • 38mm tire clearance

    • Semi-integrated alloy cockpit

    • Aero carbon seatpose

    • Frame: XDS X6 Alloy Frame, UDH Compatible

    • Fork: XDS Carbon Fork, 100x12mm Thru-axle

    • Handle Bar/Stem: Branta Alloy Integrated

    • Seatpost: XDS Carbon Seatpost, Aero Profile

    • Front + Rear Derailleur: Shimano 105 RD-R7100

    • Shifter: Shimano 105 ST-R7120

    • Brakes: Shimano 105 BR-R7170

    • Casette: CS-R9012, 12-Speed, 11-34T

    • Crankset: Branta Alloy Power Meter Crankset, 52-36T, 24mm Steel Spindle, Apple Find My Anti-Theft Technology

    • Bottom Bracket: BSA 24mm

    • Rotors: Shimano SM-RT56-S, F:160 R:160mm

    • Chain: SUMC SX12

    • Wheel Set: Branta A35 SL, Alloy Rims

    • Tires: Branta R332, 700x32C, 60TPI

      Max Tire Clearance: 38C

    • Saddle: Branta R302, Steel Rails

    • Weight Limit: 110 kg / 242 lbs

    • Weight: 9.54 kg / 21.03 lbs (Size L)

    • Size: XS / S / M / L / XL

    • Integrated power meter connects to thrid-party software form ANT+

    • Compatible with most wired, wireless, or mechanical groupsets from all major drivetrain brands.

    • Compatible with universal derailleur hanger

    • The aero cockpit is compatible with standard 2-bolt under-handlebar bike computer and combo mounts

    • The rims are tubeless ready but the tires are not tubeless compatible

    • The option to upgrade to electronic shifting after purchasing the bike

    • Both compact (50-34T) and race (54-40T) front chainring options are avaliable, in addition to the standard (52-36T) front chainrings that come stock on the bike.

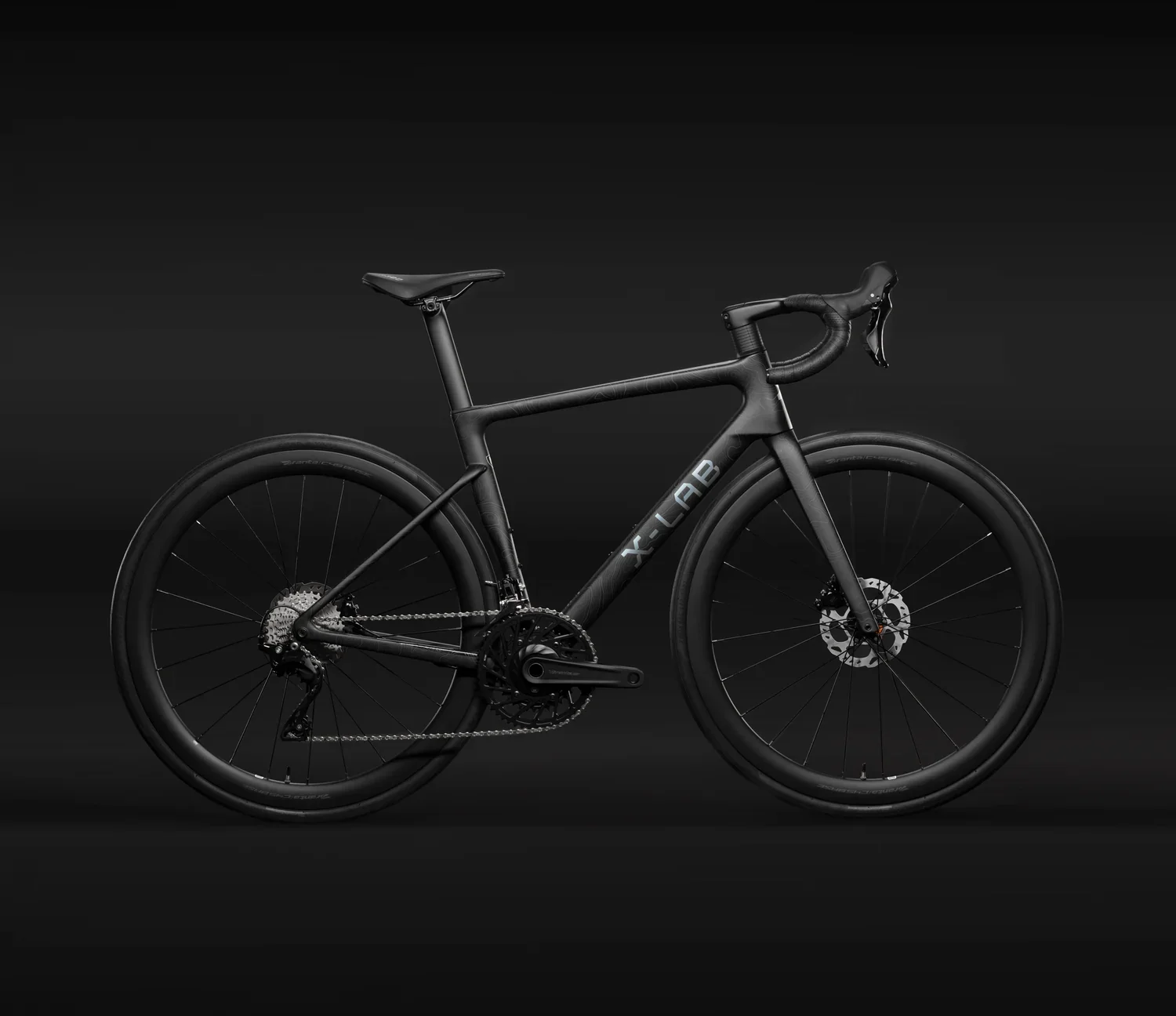

A black bicycle with a matte finish and carbon frame, featuring the brand name 'XLAB' on the side, set against a dark background.

(Singularity Black, Angel Wing White)

X-LAB RS7

The X-LAB RS7 is a performance-focused carbon road bike built for riders who want speed, efficiency, and a responsive ride feel. Its full carbon frame and fork help keep the bike lightweight and agile, while the Shimano 105 drivetrain and carbon wheelset deliver dependable performance for training, group rides, and everyday road cycling. With race-inspired design at an approachable price, the RS7 is a strong choice for riders looking to enter the world of carbon road bikes.

    • Branta C45 Base Carbon Wheelset

    • Shimano 105 Mechanical Groupset

    • Aero Carbon Seatpose

    • Full Carbon Fiber Frame + Fork

    • Weighs 8.48 kg / 18.67 lbs

    • Frame: XDS Carbon Frame, Toray T-700

    • Fork: XDS Carbon Fork, Toray T-700, 100x12mm Thru-axle

    • Handle Bar/Stem: Branta Carbon Integrated

    • Seatpost: XDS Carbon Seatpost, Aero Profile

    • Front + Rear Derailleur: Shimano 105 RD-R7100

    • Shifter: Shimano 105 ST-R7120

    • Brakes: Shimano 105 BR-R7170

    • Casette: CS-R9012, 12-Speed, 11-34T

    • Crankset: Branta Alloy Power Meter Crankset, 52-36T, 24mm Steel Spindle, Apple Find My Anti-Theft Technology

    • Bottom Bracket: BSA 24mm

    • Rotors: Shimano SM-RT70, F:160mm R:160mm

    • Chain: SUMC SX12

    • Wheel Set: Branta C45 Base Carbon Wheelset, Stainless Steel Spokes

    • Tires: Branta R332, 700x32C, 60TPI Max Tire Clearance: 32C

    • Saddle: Branta R302, Steel Rails

    • Weight Limit: 110 kg/ 242 lbs

    • Weight: 8.49 kg / 18.67 lbs (Size L)

    • Size: XS / S / M / L / XL / XXL

    • Integrated power meter connects to thrid-party software form ANT+

    • Compatible with most wired, wireless, or mechanical groupsets from all major drivetrain brands

    • Incompatible with universal derailleur hanger

    • The aero cockpit is compatible with standard 2-bolt under-handlebar bike computer and combo mounts

    • Option to upgrade to electronic shifting

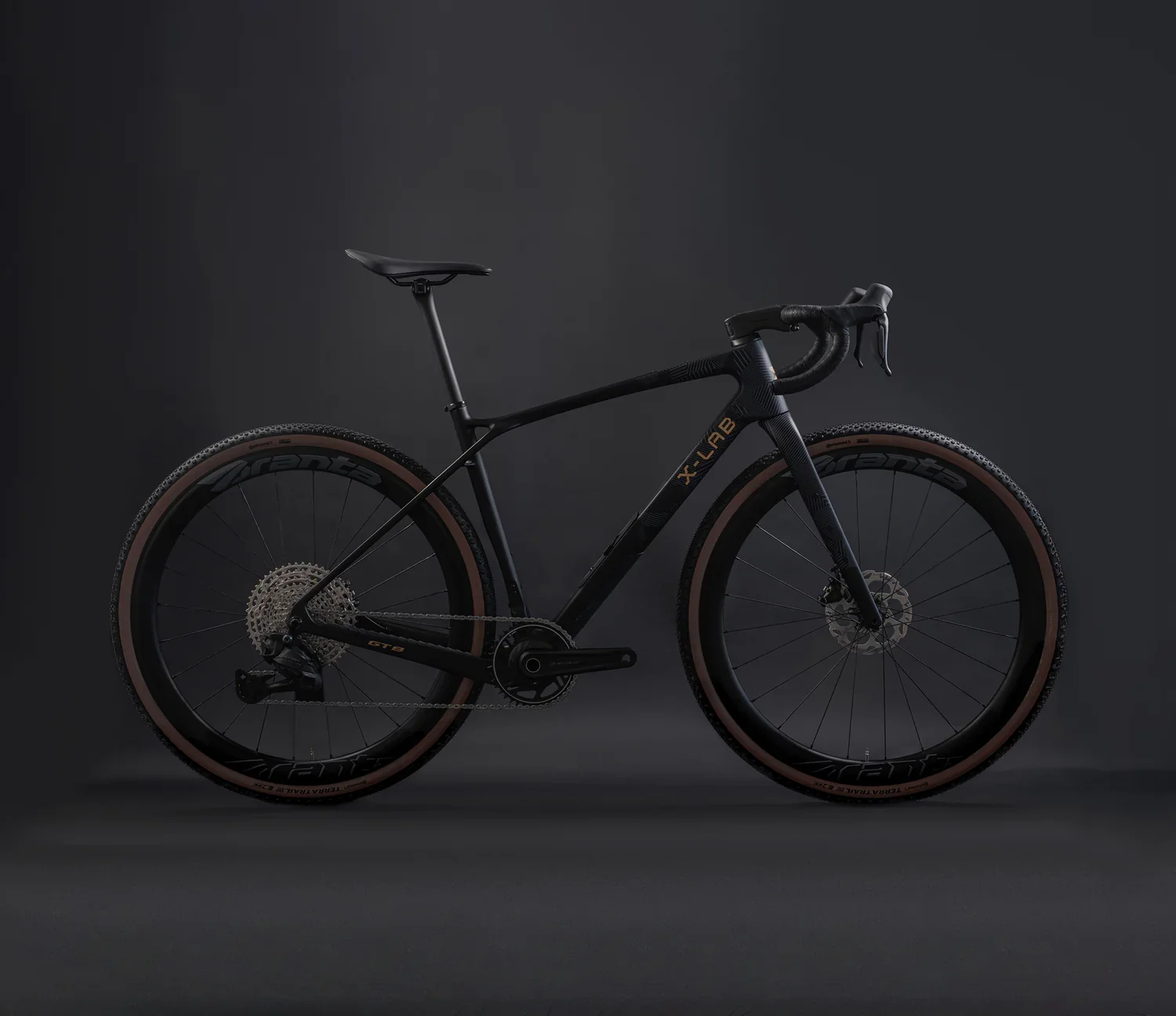

A sleek black carbon fiber road bicycle with tan colored tires and disc brakes, set against a dark background.

(Afterburner Black, Slipstream)

X-LAB GT8

The X-LAB GT8 is a performance carbon gravel bike built for riders who want speed, comfort, and confidence beyond smooth pavement. Its lightweight carbon frame, Shimano GRX Di2 electronic shifting, and wide gravel tires make it ready for everything from fast road rides to rougher backroads and gravel routes. With premium components and strong value, the GT8 is a great choice for riders seeking a modern gravel bike that handles both adventure and performance.

    • Branta C45 gravel carbon wheelset

    • Shimano GRX717 Di2 groupset

    • Branta alloy crankset with integrated power meter

    • Apple Find My anti-theft technology

    • In-frame storage and accessory mounting points on frame and fork

    • Frame: XDS Carbon Frame, Toray T-800, UDH Compatible

    • Fork: XDS Carbon Fork, Toray T-800, 100x12mm Thru-Axle

    • Stem: Branta Carbon Stem

    • Handle Bar: Branta Gravel Carbon Handlebar

    • Seatpost: XDS Carbon 27.2mm

    • Rear Derailleur: Shimano GRX RD-RX717 Di2

    • Shifter: Shimano GRX ST-RX717 Di2

    • Brakes: Shimano GRX BR-RX715

    • Casette: Shimano CS-M6100-12, 10-51T

    • Crankset: Branta Alloy Power Meter Crankset, 40T, Narrow-wide Teeth, 24mm Steel Spindle, Apple Find My Anti-Theft Technology

    • Bottom Bracket: T47 24mm

    • Rotors: Shimano SM-CL700, F:160mm R:160mm

    • Chain: Shimano CN-M6100

    • Wheel Set: Branta C45 Gravel Carbon Wheelset, Stainless Steel Spokes

    • Tires: Continental Terra Trail 700x45C

      Max Tire Clearance: 55C

    • Saddle: Fizik Terra Argo X7

    • Weight Limit: 110 kg / 242 lbs

    • Weight: 8.78 kg / 19.31 lbs (Size M)

    • Size: XS / S / M / L / XL / XXL

    • Integrated power meter connects to thrid-party software form ANT+

    • Compatible with most wired and wireless electronic groupsets from all major drivetrain brands

    • Compatible with both 1x and 2x drivetrain options.

    • Compatible with universal derailleur hanger

    • The 2-piece cockpit is compatible with standard 2-bolt under-handlebar bike computer and combo mounts

    • The rims and tires are tubeless ready, and tubeless rim tape is already installed. Tubeless valves and sealant must be purchased separately.

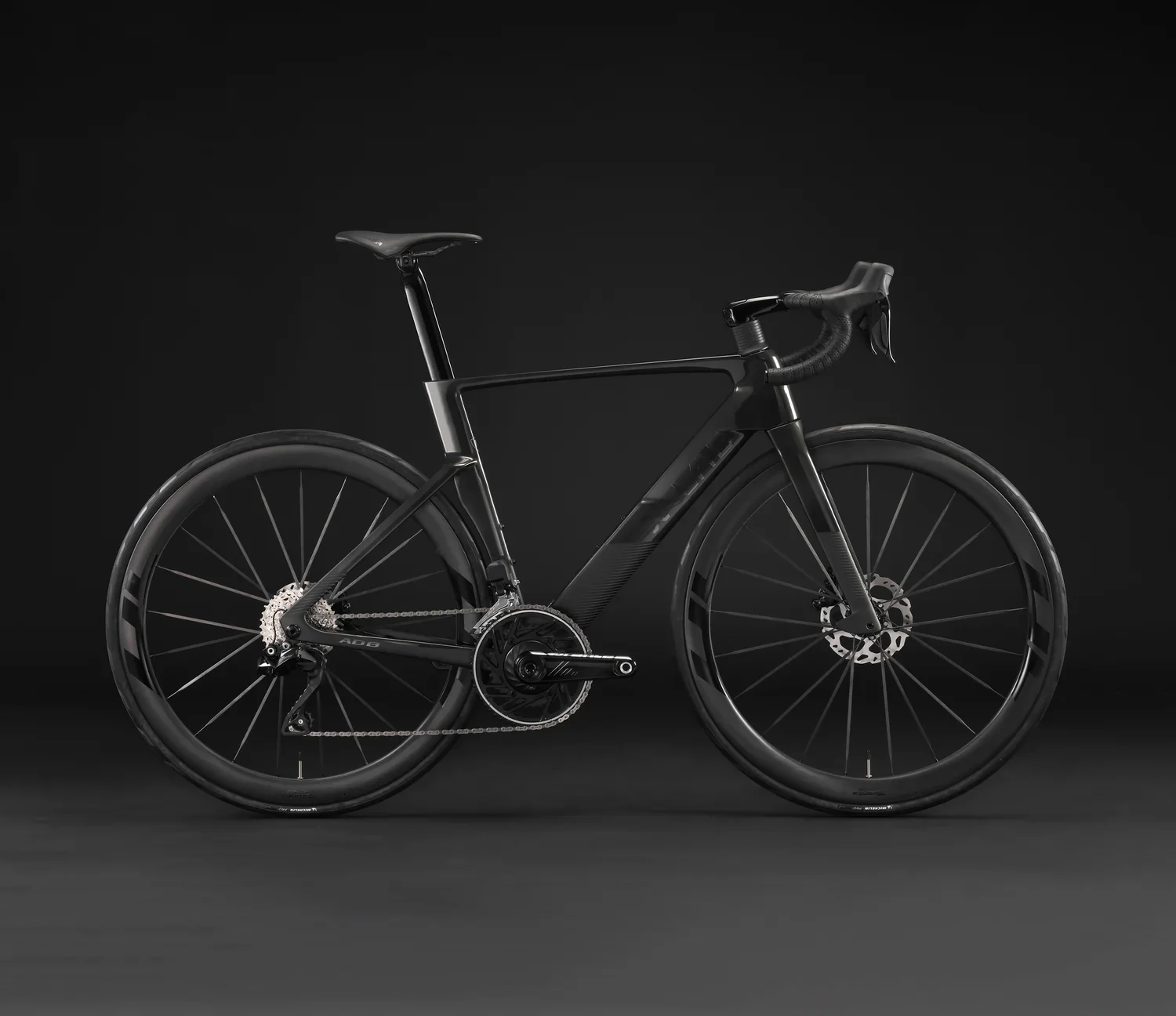

Black and gray sleek road bicycle with aerodynamic design against a dark background.

(Strata Grey/Black, Sunspot Red/Black, Starlight Blue/White)

X-LAB AD8

The X-LAB AD8 is a performance carbon road bike designed for riders who want speed, aerodynamics, and modern electronic shifting. Its lightweight carbon frame helps deliver a fast, responsive ride, while the Shimano 105 Di2 drivetrain provides smooth and precise gear changes. With race-inspired design and premium features, the AD8 is a strong choice for riders looking for a high-performance road bike at a competitive value.

    • Branta Carbon Crankset with Integrated Power Meter

    • Apple Find My anti-theft connection

    • X-LAB Bikes App data sharing

    • Shimano 105 Di2 groupset

    • Branta C45 UL carbon wheelset with carbon spokes, 1,330g / 2.93 lbs

    • XDS Carbon Frameset with Toray T800

    • Weighs 7.41 kg / 16.3 lbs

    • Frame: XDS Carbon Frame, Toray T-800, UDH Compatible

    • Fork: XDS Carbon Fork, Toray T-800, 100x12mm Thru-axle

    • Handle Bar/Stem: Branta Carbon Integrated

    • Seatpost: XDS Carbon Seatpost, Aero Profile

    • Front + Rear Derailleur: Shimano 105 FD-R7150 Di2

    • Shifter: Shimano 105 ST-R7170 Di2

    • Brakes: Shimano 105 BR-R7170

    • Casette: Shimano 105 CS-R7101, 11-34T

    • Crankset: Branta Carbon Power Meter Crankset, 52-36T, 29mm Alloy Spindle, Apple Find My Anti-Theft Technology

    • Bottom Bracket: T47 29mm

    • Rotors: Shimano SM-RT70, F:160mm R:140mm

    • Chain: Shimano CN-M7100

    • Wheel Set: Branta C45 UL, Carbon Rims & Spokes

    • Tires: Michelin Pro 5 700x28C

      Max Tire Clearance: 32C

    • Saddle: Selle Italia SLR Boost, Carbon Rails

    • Weight Limit: 100 kg / 220 lbs

    • Weight: 7.41 kg / 16.3 lbs (Size L)

    • Size: XS / S / M / L / XL

    • Integrated power meter connects to thrid-party software form ANT+

    • Compatible with most wired and wireless electronic groupsets from all major drivetrain brands.

    • Compatible with universal derailleur hanger

    • The aero cockpit is compatible with standard 2-bolt under-handlebar bike computer and combo mounts

    • The rims and tires are tubeless ready, and tubeless rim tape is already installed. Tubeless valves and sealant must be purchased separately.

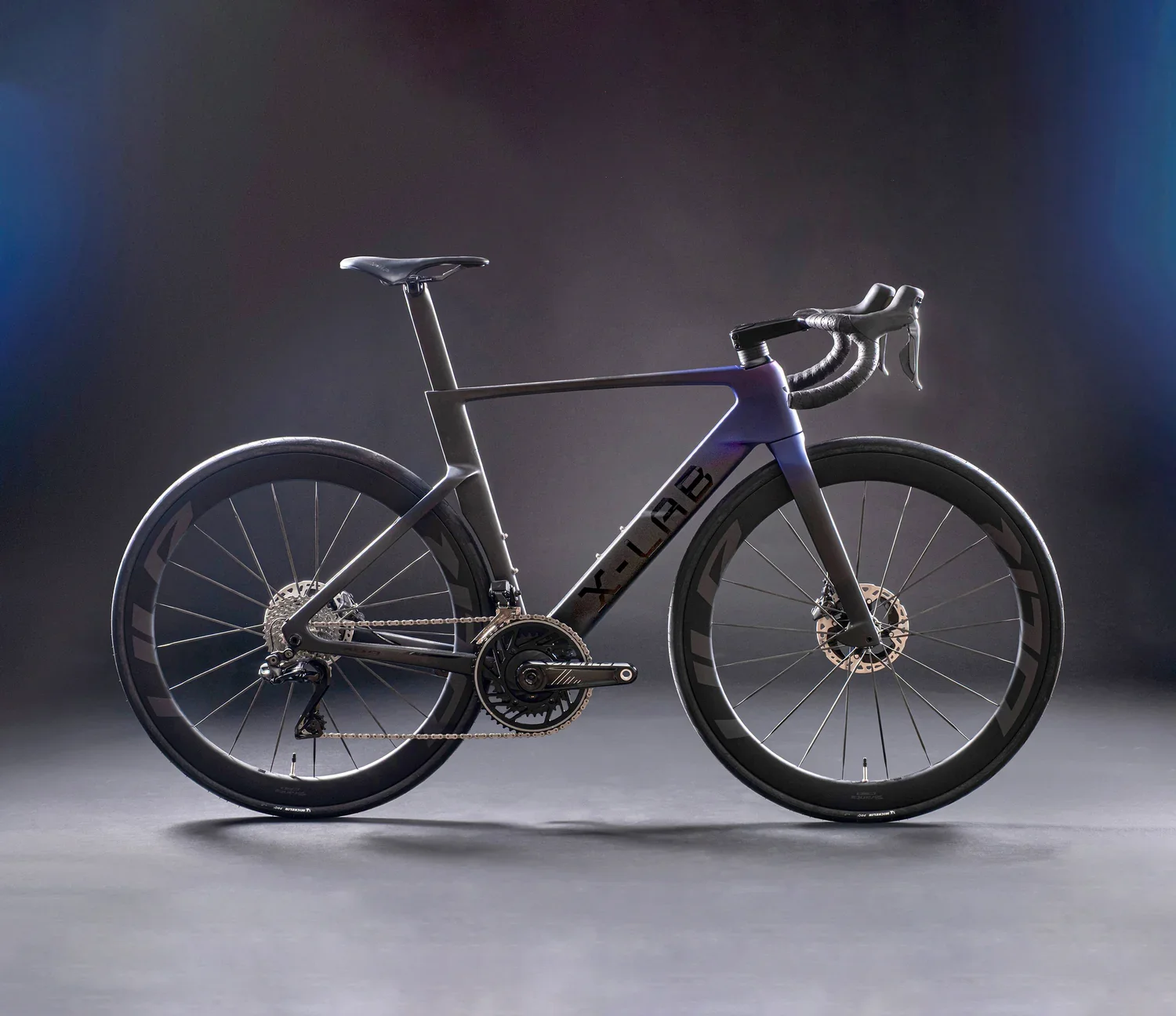

A sleek, modern black and gray road bicycle with disc brakes and deep-dish aerodynamic wheels, set against a dark background with subtle lighting.

(Hawkeye Purple/Black, Astana Team Edition)

X-LAB AD9

The X-LAB AD9 is a top-tier carbon aero road bike built for riders who want race-level speed, efficiency, and lightweight performance. Its advanced Toray T1100 carbon frame delivers a responsive ride feel, while the aerodynamic design helps maximize power on fast group rides, training, and competitive road cycling. With WorldTour-inspired engineering and premium components, the AD9 is X-LAB’s flagship choice for riders looking for serious performance.

    • Branta carbon crankset with integrated power meter

    • Apple Find My anti-theft technology

    • Shimano Dura-Ace Di2 groupset

    • Branta C50 ULR carbon wheelset with carbon spokes | 1,230 g

    • XDS carbon frameset with Toray T1100 | Full bike 6.8 kg

    • Frame: XDS Carbon Frame, Toray T-1100, UDH Compatible

    • Fork: XDS Carbon Fork, Toray T-1100, 100x12mm Thru-axle

    • Handlebar / Stem: Branta Carbon Integrated

    • Seatpost: XDS Carbon Seatpost, Aero Profile

    • Front + Rear Derailleur: Shimano Dura-Ace RD-R9250 Di2

    • Shifter: Shimano Dura-Ace ST-R9270 Di2

    • Brakes: Shimano Dura-Ace BR-R9270

    • Casette: Shimano Dura-Ace CS-R9200, 11-34T

    • Crankset: Branta Carbon Power Meter Crankset, 52-36T, 29mm Alloy Spindle, Apple Find My Anti-Theft Technology

    • Bottom Bracket: T47 29mm

    • Rotors: Shimano SM-MT900, F:160mm

    • Chain: Shimano CN-M9100

    • Wheel Set: Branta C50 ULR, Carbon Rims & Spokes, Ceramic Bearings

    • Tires: Michelin Pro 5 700x28C

      Max Tire Clearance: 32C

    • Saddle: Prologo Nago R4 PAS, Carbon Rails (Team Replica)

      Selle Italia SLR Boost, Carbon Rails (Hawkeye)

    • Weight Limit: 100 kg / 220 lbs

    • Weight: 6.82 kg / 15.03 lbs (Size L)

    • Size: XS / S / M / L / XL

    • Integrated power meter connects to thrid-party software form ANT+

    • Compatible with most wired and wireless electronic groupsets from all major drivetrain brands

    • Compatible with universal derailleur hanger

    • The aero cockpit is compatible with standard 2-bolt under-handlebar bike computer and combo mounts.

    • The rims and tires are tubeless ready, and tubeless rim tape is already installed. Tubeless valves and sealant must be purchased separately.

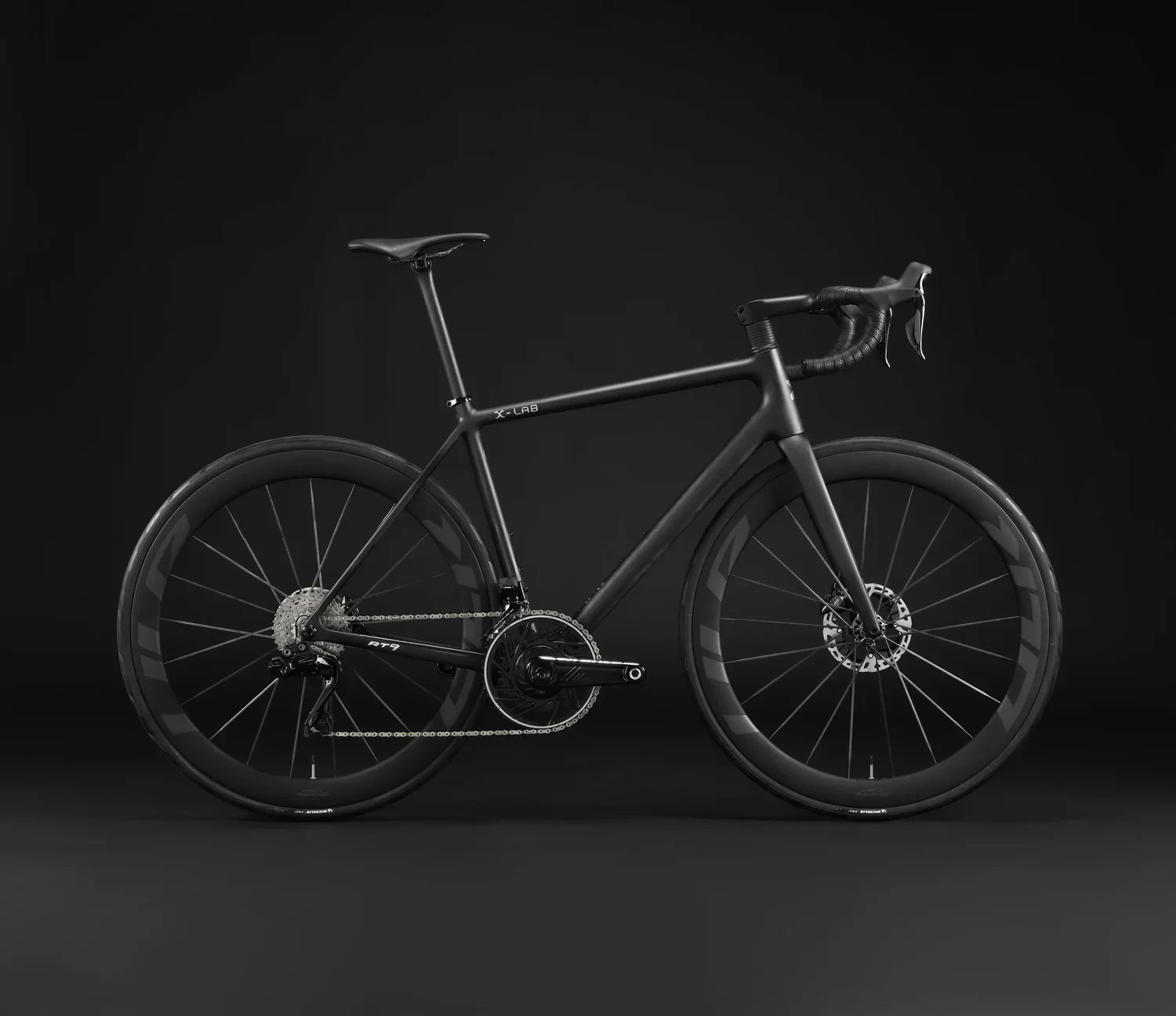

A sleek, black, modern road bicycle with disc brakes and aerodynamic deep-section wheels, displayed against a black background.

(Shadowbox)

X-LAB RT9

The X-LAB RT9 is an ultra-light carbon road bike built for riders who want elite climbing performance, fast acceleration, and a highly responsive ride feel. Its advanced carbon frame keeps the bike exceptionally light while maintaining the stiffness and control needed for serious road riding. As X-LAB’s lightweight race-focused model, the RT9 is a strong choice for cyclists looking for top-level performance on climbs, fast group rides, and competitive training.

    • Branta C50 ULR carbon wheelset with carbon spokes | 1,230 g

    • Branta carbon crankset with integrated power meter

    • Apple Find My anti-theft technology

    • Shimano Dura-Ace groupset

    • XDS carbon frameset with Toray T1100, Full bike 6.2kg

    • Frame: XDS Carbon Frame, Toray T-1100 + M40X, UDH Compatible

    • Fork: XDS Carbon Fork, Toray T-1100, 100x12mm Thru-axle

    • Handle Bar/Stem: Branta Carbon Integrated

    • Seatpost: XDS Carbon Seatpost, 27.2mm

    • Front + Rear Derailleur: Shimano Dura-Ace RD-R9250 Di2

    • Shifter: Shimano Dura-Ace ST-R9270 Di2

    • Brakes: Shimano Dura-Ace BR-R9270

    • Casette: Shimano Dura-Ace CS-R9200, 11-34T

    • Crankset: Branta Carbon Power Meter Crankset, 52-36T, 29mm Alloy Spindle, Apple Find My Anti-Theft Technology 29mm Alloy Spindle, Apple Find My Anti-Theft Technology

    • Bottom Bracket: BSA 29mm

    • Rotors: Shimano SM-MT900, F:160mm

    • Chain: Shimano CN-M9100

    • Wheel Set: Branta C50 ULR, Carbon Rims & Spokes, Ceramic Bearings

    • Tires: Michelin Pro 5 700x28C

      Max Tire Clearance: 30C

    • Saddle: Selle Italia SLR Boost, Carbon Rails

    • Weight Limit: 100 kg / 220 lbs

    • Weight: 6.20 kg / 13.64 lbs (Size L)

    • Size: XS / S / M / L

    • Integrated power meter connects to thrid-party software form ANT+

    • Compatible with most wired and wireless electronic groupsets from all major drivetrain brands.

    • Compatible with universal derailleur hanger

    • The aero cockpit is compatible with standard 2-bolt under-handlebar bike computer and combo mounts

    • The rims and tires are tubeless ready, and tubeless rim tape is already installed. Tubeless valves and sealant must be purchased separately.
